Introducing

Customized Antenna Solution

Amphenol devoted to develop the customized antennas solution and ensure performance exceeds customer requirements.

One-Stop Service

100% in-house design, and further optimization possible with simulation tool, fast and efficiency in design.

Custom-Antenna-Solution_2
Let's Work Together
Contact Us

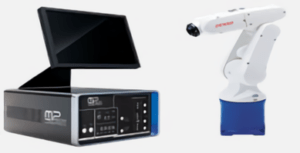

R&D Resource

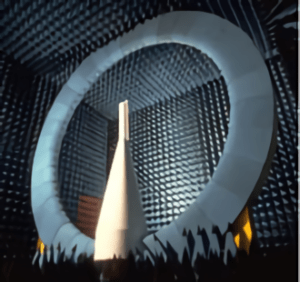

Using state-of-the-art antenna design and measurement equipment for accurate and fast commercialization.



–Passive tests (650M -10GHz)

–Active GSM/ GPRS/EDGE(850/900/1800/1900)

–Active CDMA/EVDO(450/850/1900)

–Active WCDMA(All Band)

–Active 4G LTE FDD/TDD support

–WIFI 802.11a,b,g,n Support

–CA Testing

–Active 5G-FR1

Cover most of the cellular standards

–ISO IEC-10373-6 Class1~3 (PCD/PICC)
–ISO IEC-18092 IP1/IP2
–EMVCo Analog Type A/B (PCD/PICC)
–Forum Analog (Listening/Polling)

  • CST Simulation software
  • SEMCAD Simulation software
  • Microwave Office (MWO-100)

Laser Direct Structuring (LDS)

100% ownership, controlled materials, and production process to ensure success in Mass production

Plastic injection molding

Plastic injection molding

Molded part

Molded part

Laser etching pattern

Laser etching pattern

After laser activating

After laser activating

Electroless plating

After Electroless plating

After Electroless plating

Antenna Solutions

Laptop/Tablet/Embedded antenna solution.

2006

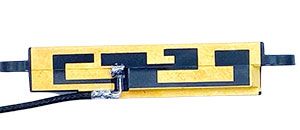

PCB Antenna (WLAN)

2007
Stamping Combo Antenna (WWAN & WLAN)

2008
FPCB + Stamping Combo Antenna (WWAN & WLAN)

FPCB + Stamping Combo Antenna (WWAN & WLAN)

2010
LDS Combo Antenna (WWAN & WLAN)

2013
P-Sensor + SMT components with LDS Antenna

2019
Speaker box with LDS Antenna

2020
Metal housing Antenna (WWAN & MIMO)

2021
Dynamic Flat Cable

2022
Reduce Size Antenna with LDS (WWAN & MIMO)
